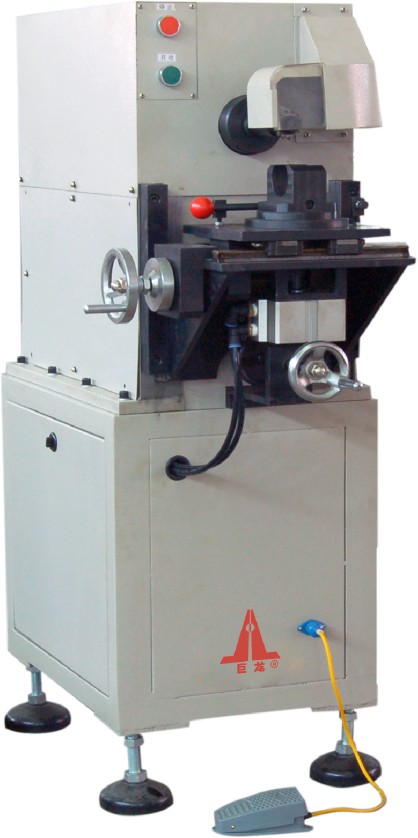

QCJ-1型 去重機
0CJ-1 Weight-taking machine
適用各種轉子校平衡與動平衡機配套，對電樞鐵芯進行去重切削的專用設備。本機由夾緊裝置調頭旋轉，切削料微調深度裝置，水平切削長度調節(jié)裝置，主銑刀頭及工件氣動上升自動作切削，橫向去重刻度盤調整，腳踏開關控制，操作簡單方便。
Applicable to a variety of rotor balancing and balancing machine matching, the armature core to heavy cutting of special equipment.This machine is controlled by the turning of the clamping device, the depth of cutting material, the cutting length of the cutting device, the milling head and the workpiece.
技術參數(shù)/Technicai Parameters
| 電源電壓Supply voltage | AC380±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
總功率Total power |
2kw |
| 銑刀速度Cutter speed | 1400r/min |
| 轉子長度Rotor length |
≤250mm |
