（4工位）ZB-304型 雙飛叉全自動轉子繞線機

ZB-304  Double Fork Automatic Rotor Winding Machine

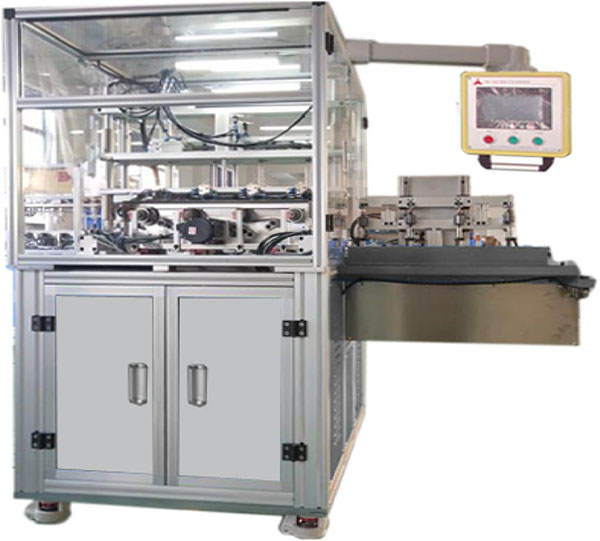

本機適用于電機轉子的自動繞線，采用四工位同步繞線結構，由兩套主伺服電機一拖四及一套一拖四轉位分度伺服電機及PLC控制系統，由手動上下工件，轉子自動對槽定位后氣動自動拉入繞線位，進行自動繞線、轉位、掛鉤、自動夾線、繞完后自動退出。人工取下工件，另一組轉子自動插入定位座后又自動拉入繞線位，完工后自動退出，人工取下工件。

This machine is suitable for automatic winding of motor rotor. It adopts four-station synchronous winding structure. It consists of two sets of main servo motor of one for four type, one set of index servo motor one for four type and PLC control system. Manually put the workpiece, the slot is automatically positioned, rotors are automatically pulled into the winding position , the machine automatically winds, indexs, hooks, clamps, and exits after winding. The workpiece is manually removed, and the other set of rotors is automatically inserted into the positioning and then automatically pulled into the winding position. After completion, the machine automatically exits and manually removes the workpiece.

技術參數/Technicai Parameters
