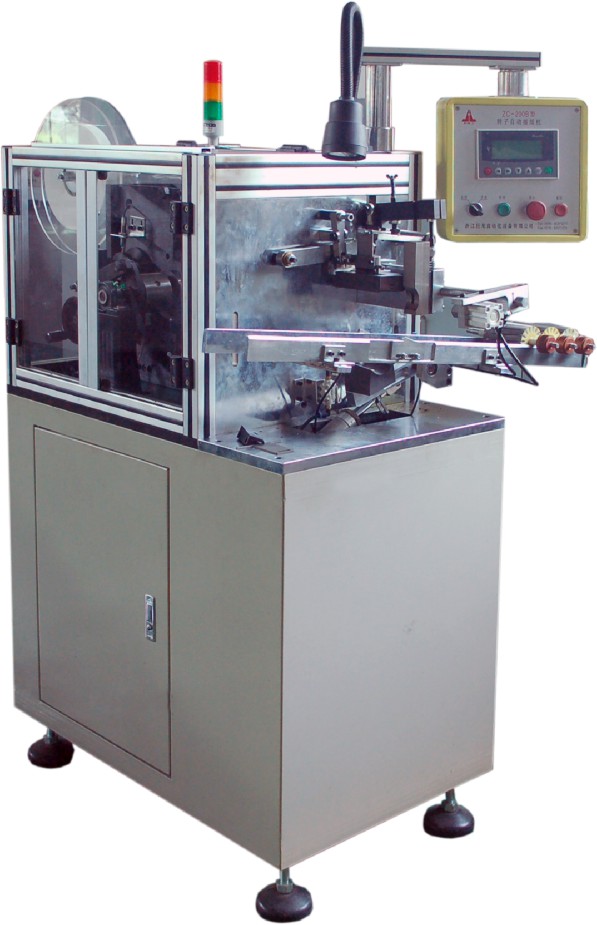

ZC-200B型 轉子自動插紙機
ZC-200B Rotor Automatic Insulation Paper Inserting Machine
適用各類微電機、電動工具、汽車摩托車電機的轉子槽紙自動插入。采用電機與電磁離合制動器驅動機械動作，中文液晶顯示界面和三菱PLC程控，自動裝夾定位、切斷、成形、插入、轉位一次性完成，有滿料停止保護功能，生產效率高。
Suitable for rotor slot paper insertion of kinds of micro motor, electric tool and auto motorcycle motors.Use motor and electromagnetism clutch arrester to drive mechanical operation,Chinese display interface, PLC programming,automatic loading and location, cutting off,shaping, insertion and parting, finish in one time.
技術參數(shù)/Technicai Parameters
| 電源電壓Supply voltage | AC220±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
總功率Total power |
1kw |
| 工件總長度Total length of workpiece | 20~280mm |
| 轉子長度Rotor length |
15~80mm |
| 鐵芯厚度Core thickness | 15~80mm |
