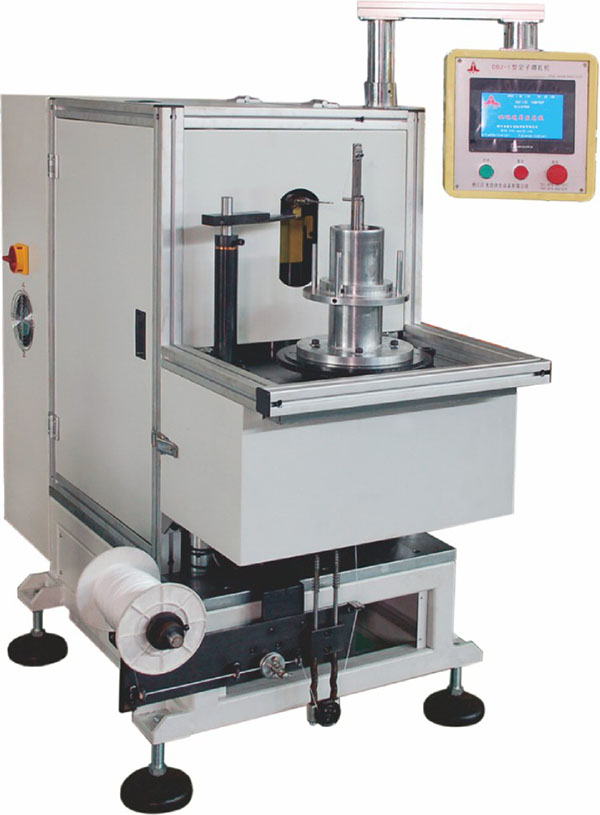

DB-1型 伺服單頭綁扎機

DB-1 Stator Coil Lacing Machine

本機為立式單頭自劫綁扎機，集機、電、氣一體化，該機可以自動連續實現定子繞組端部的綁扎。通過凸輪鏈輪、齒輪以及連桿機構來實現各動作，氣動完成各種輔助動作，采用可編程控制器進行白動循環控制，觸摸屏顯示參數，主傳動采用變頻器無級調速。

This machine is a vertical single-head automatic binding machine, integrating machine, electricity and gas. The machine can automatically bind the ends of the stator windings continuously. Through the cam sprocket, gear and linkage mechanism to achieve each action, pneumatically complete a variety of auxiliary actions, using a programmable controller for automatic cycle control, touch screen display parameters, the main drive uses inverter stepless speed regulation.

技術參數/Technicai Parameters
