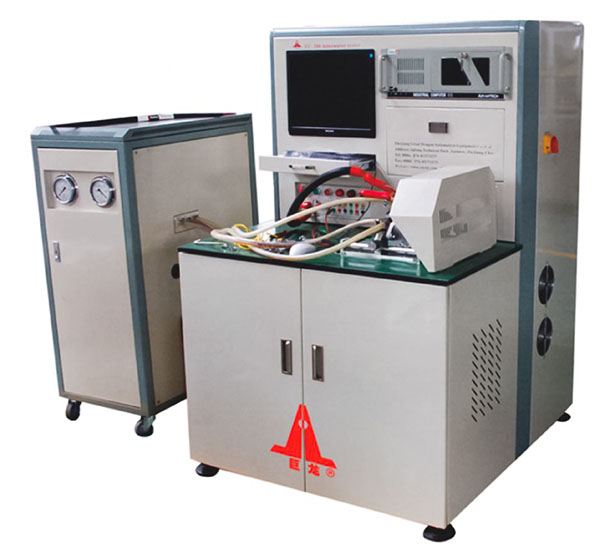

FC-200型 汽車發電機測試臺
FC-200 Model Auto Dynamotor Testing Platform
適用于汽車發電機的整機性能測試，打印并儲存特性曲線與參數。采用交流變頻無級調速，工業控制微機、氣動安裝裝夾裝置、電子負載系統等組成。轉速由發電機輸出端測量無誤差，負載為純電阻特性無調制，并視用戶需要加裝真空泵測試。
Applicable to the car generator performance test, print and store the characteristics of curves and parameters.AC variable frequency stepless speed control, industrial control computer, pneumatic installation clamping device, electronic load system and other components. Speed measurement by the generator output without error, the load is pure resistance characteristics without modulation, and as the user needs to install a vacuum pump test.
技術參數/Technicai Parameters
|
電源電壓Supply voltage |
AC380V±10%50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
電機轉速M(fèi)otor rotating speed |
0~18000r/min |
| 負載電流Load current |
0~200A |
|
工作電壓Operating Voltage |
0~40V |
|
輸出功率Output Power |
0~5kw |
|
特殊規格可定制Special specifications can be customized |
|
