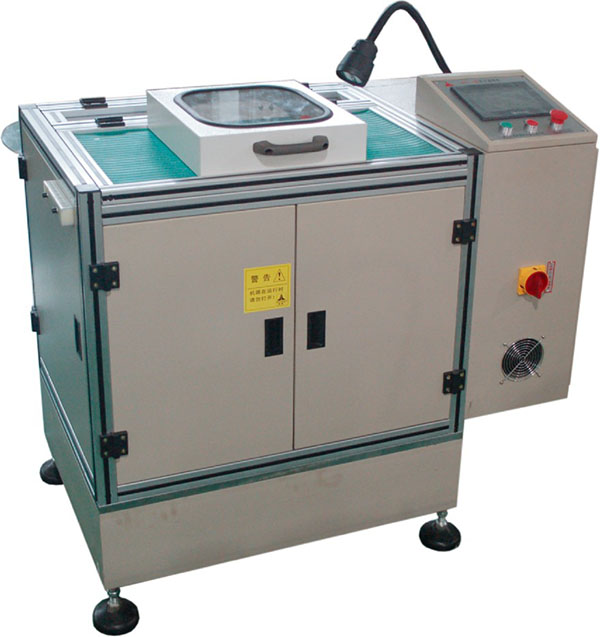

DFC-1型 定子插紙機
DFC-1 Stator Paper Inserting Machine
本機專為各類電機定子插紙?jiān)O(shè)計制作，廣泛應用于汽車電機等各種定子插紙專用設備，是一種經濟、快速、高效可靠的專用插紙?jiān)O(shè)備。采用三菱變頻調速技術控制三相異步電動機拖動系列機械機構完成插紙動作，二個伺服電機控制定子分度和送紙, PLC控制, 觸摸屏顯示器。采用變頻器無級調速，伺服電機控制分度，伺服送紙，機械結構筒單，通用性強。
This equipment is specially designed for all kinds of motor stator paper inserting. It is widely used in automobile motors area. It is an economical, fast, efficient and reliable special paper inserting equipment. Using Mitsubishi variable frequency spee control technology to control the three-phase asynchronous motor drag series mechanical mechanism to complete the paper insertion action. It adpots two servo motors to control the stator indexing and paper feeding, PLC and touch screen display. It adopts stepless speed regulation of frequency converter, servo motor to control indexing and paper feeding, simple mechanical structure, and strong versatility.
技術參數/Technicai Parameters
| 輸入電壓Supply voltage | AC220V±10% |
| 額定頻率Rated power | 50Hz |
| 顯示方式 Display method | 觸摸屏顯示器Touch screen |
| 調速方式Speed mode |
變頻無級調節 Variable frequency stepless adjustment |
|
調頻范圍 Frequency range |
0.25~60HZ |
|
最大頻率極限 Maximum frequency limit |
60HZ |
